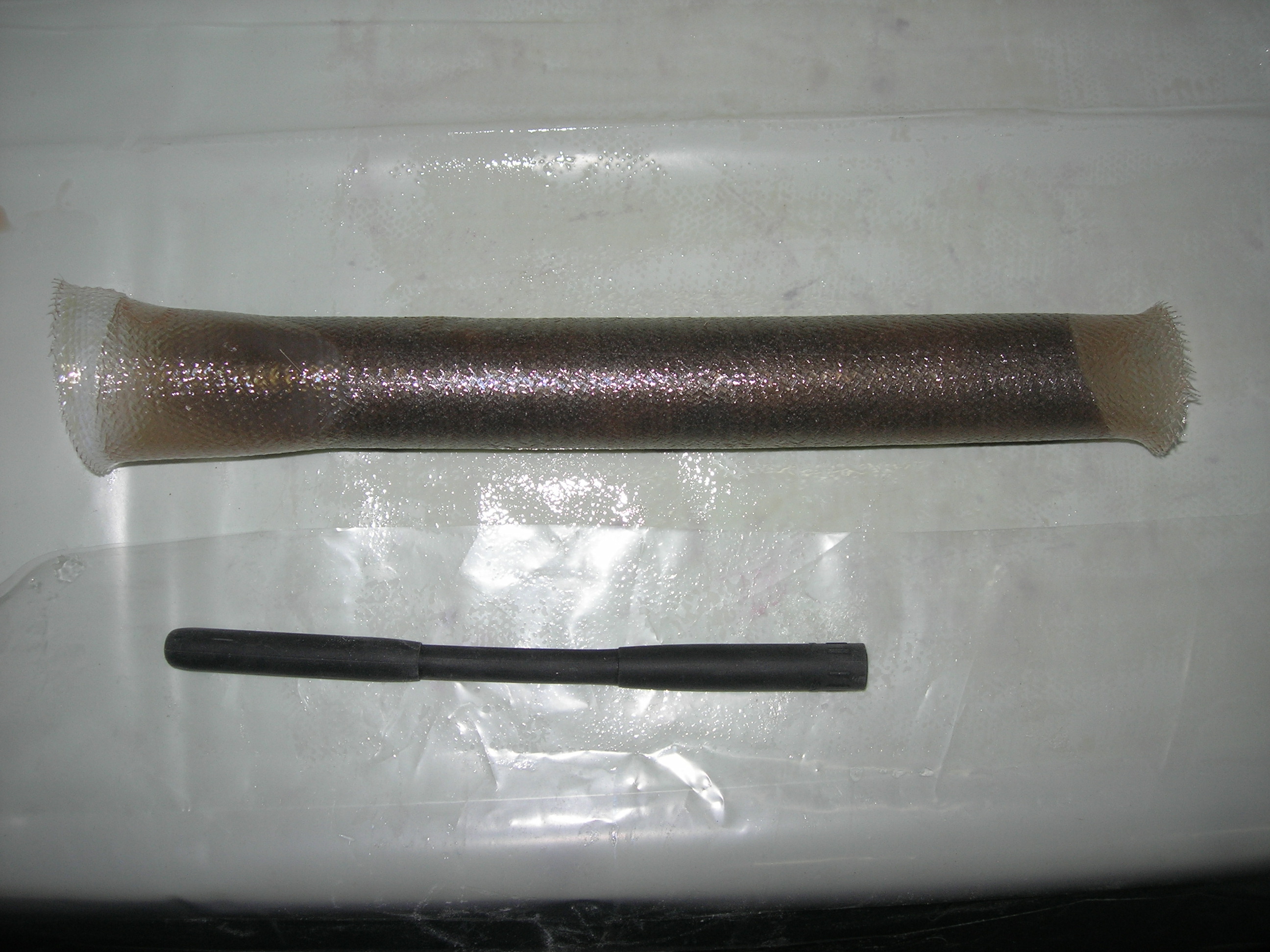

Antenna holder/module strengthening tube.

We have a panel mounted Vertex handheld. Somewhere, we need a place to store rubber ducky antenna. Somehow starboard side of instrument module could use a bit of stiffening. Synergistic harmonization kills 2 birds with 1 stone. Once trimmed to fit weight was a tad over an oz. Used a piece of pipe insulation as core but needed to take a portion out to get proper ID. Then covered with 3M 375 packaging tape and went around twice with BID.
Y10-01-24

Date: 01/18/2010
