Ant_5

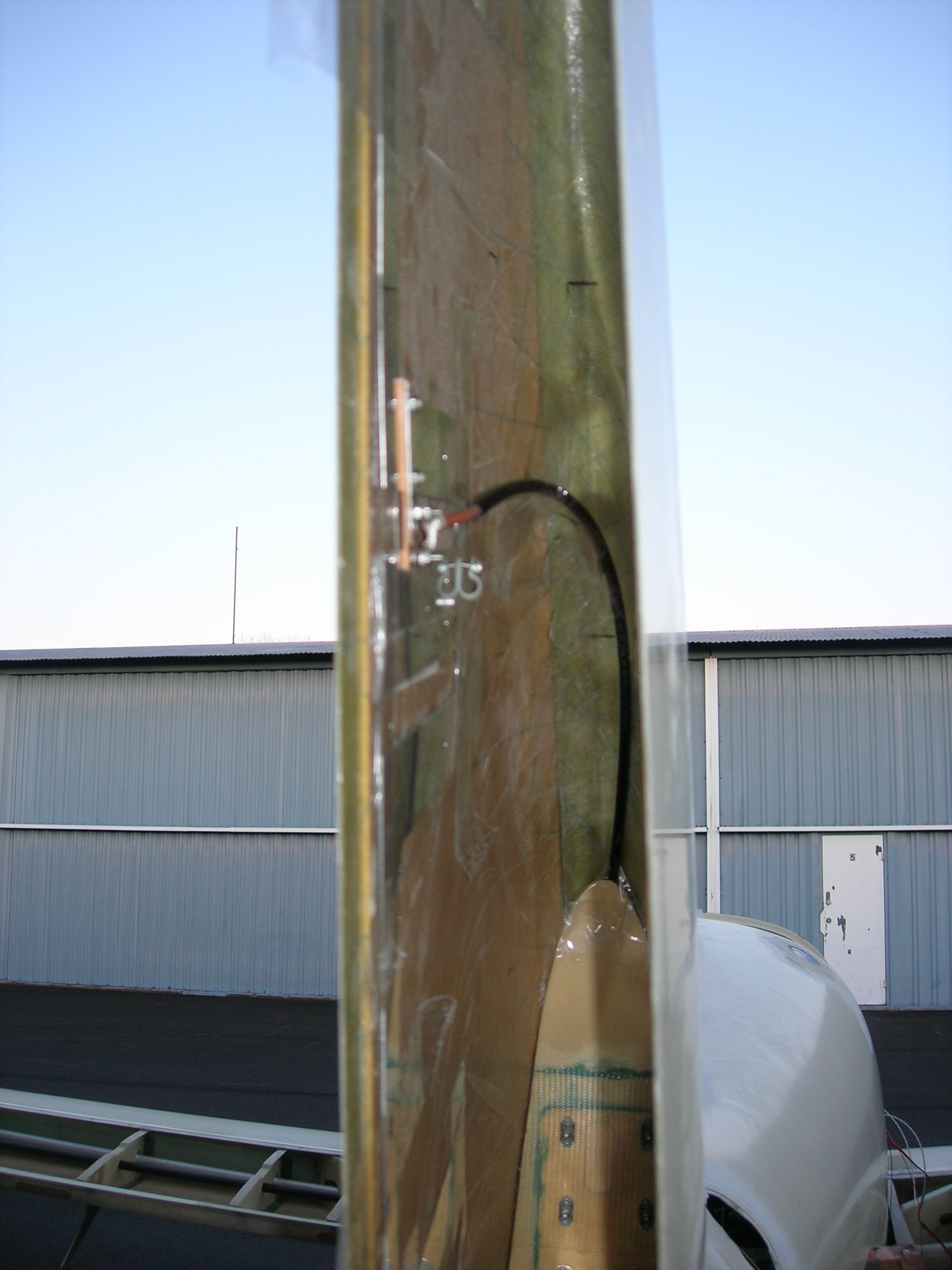

Here's "E" Archer antenna taped in place for test. Have a Synflex tube bonded in place that will route RG-400 cable. Going to try and line up gap below just below center horizontal with middle rib which will keep top of "E" below fin cap.
Y9-02-17

Date: 02/17/2009
