Port rudder cable guide 6

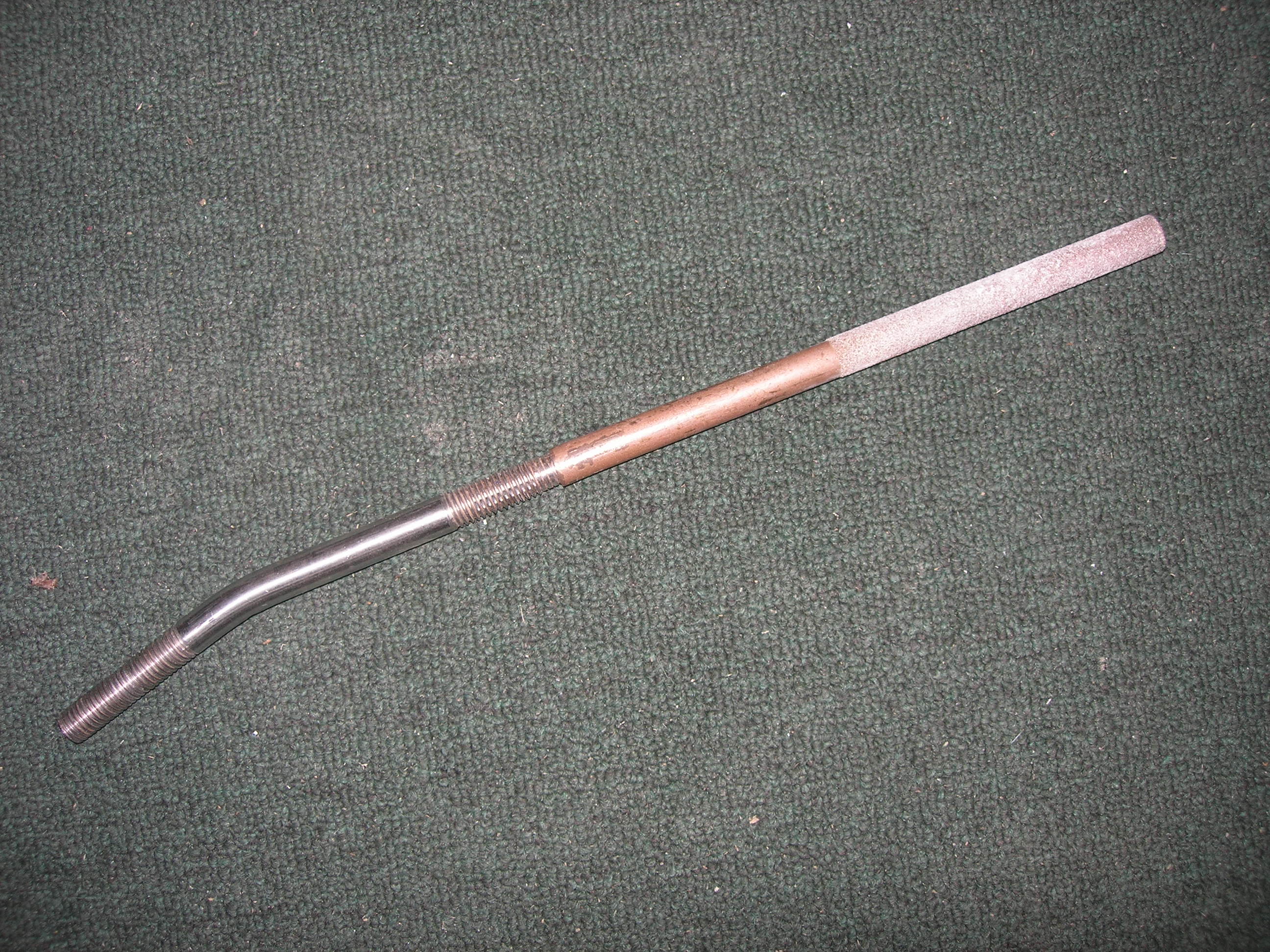

Made an extension for round Permagrit that allowed enlarging of port rudder cable hole in sternpost with rudder in place and swung starboard.
Y9-05-30

Date: 05/29/2009
