Fin plumbing 2.

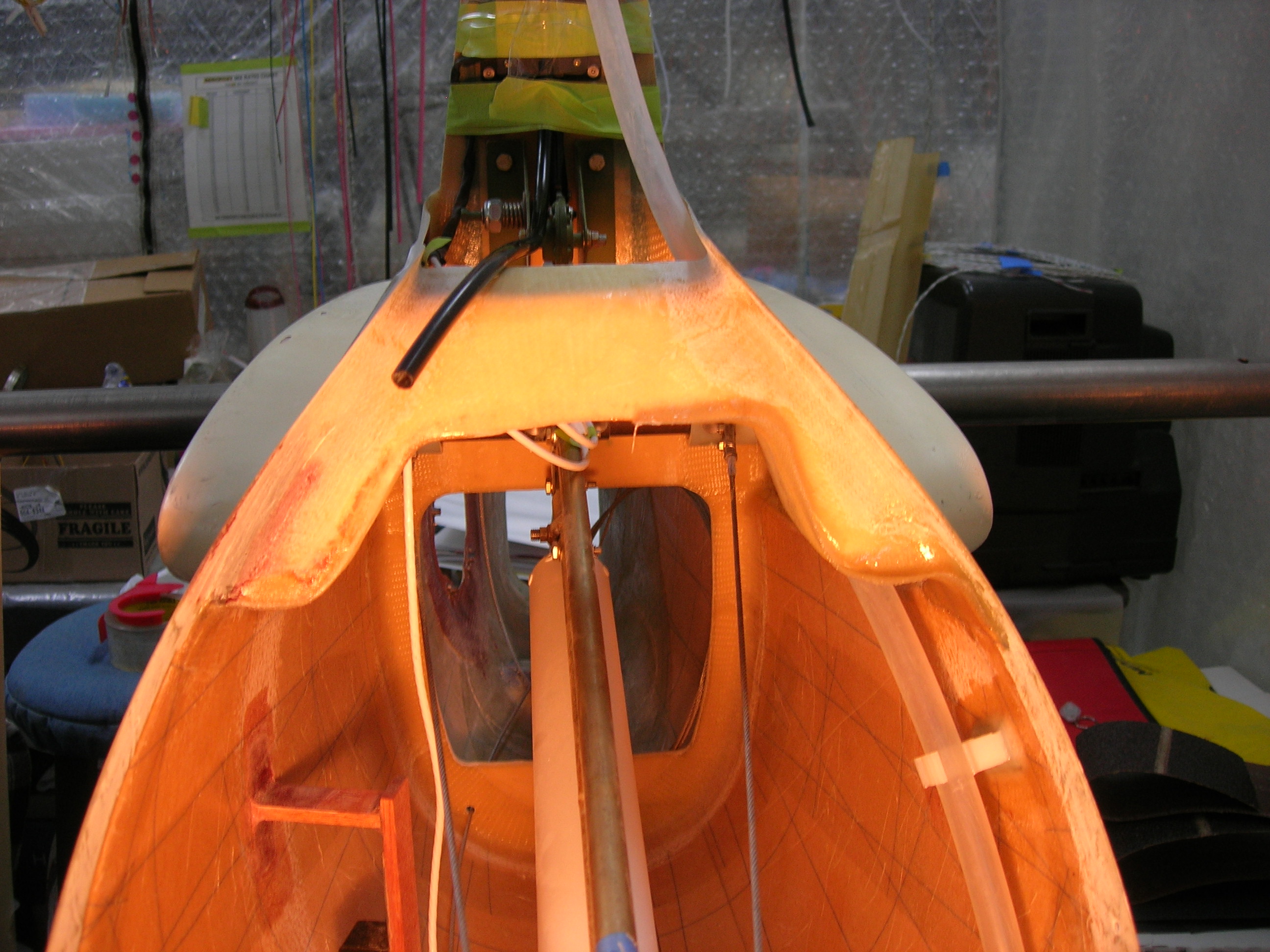

Translucent conduit runs behind neckbrace and along port lower fuse. Black conduit runs above neckbrace clipped to upper fuse above access hole, (further from transponder antenna and more horizontal compared to following 45 degree seam).
