Landing LED Dynajet

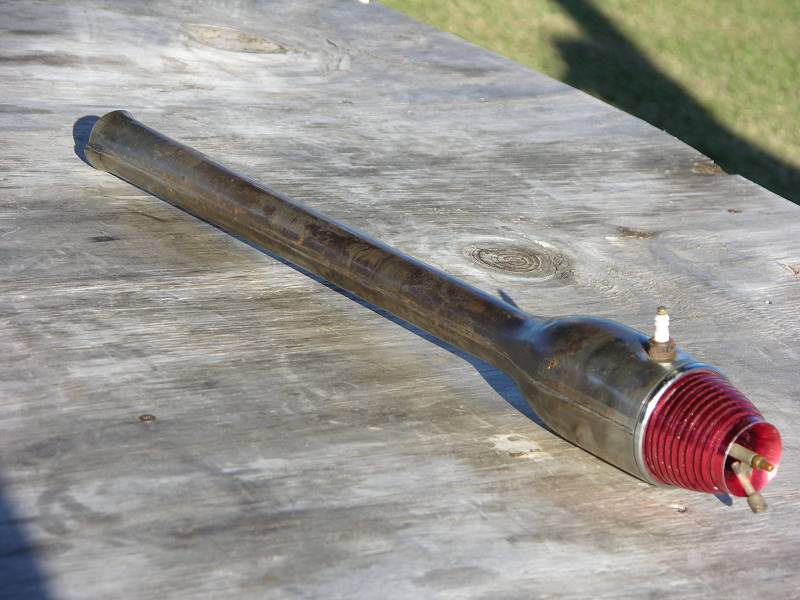

For heat sink cooling of Kuntzleman LED, LED mount, and pleasing (aesthetics at least) aerodynamic shape, plan to turn a bar of 6061 aluminium with fins, not too much unlike the cold side of a model Dynajet pulse jet (mini version of German V1 "buzz" bomb) that is now have sitting on work bench for "inspiration".
Y9-01-10

Date: 01/12/2009
